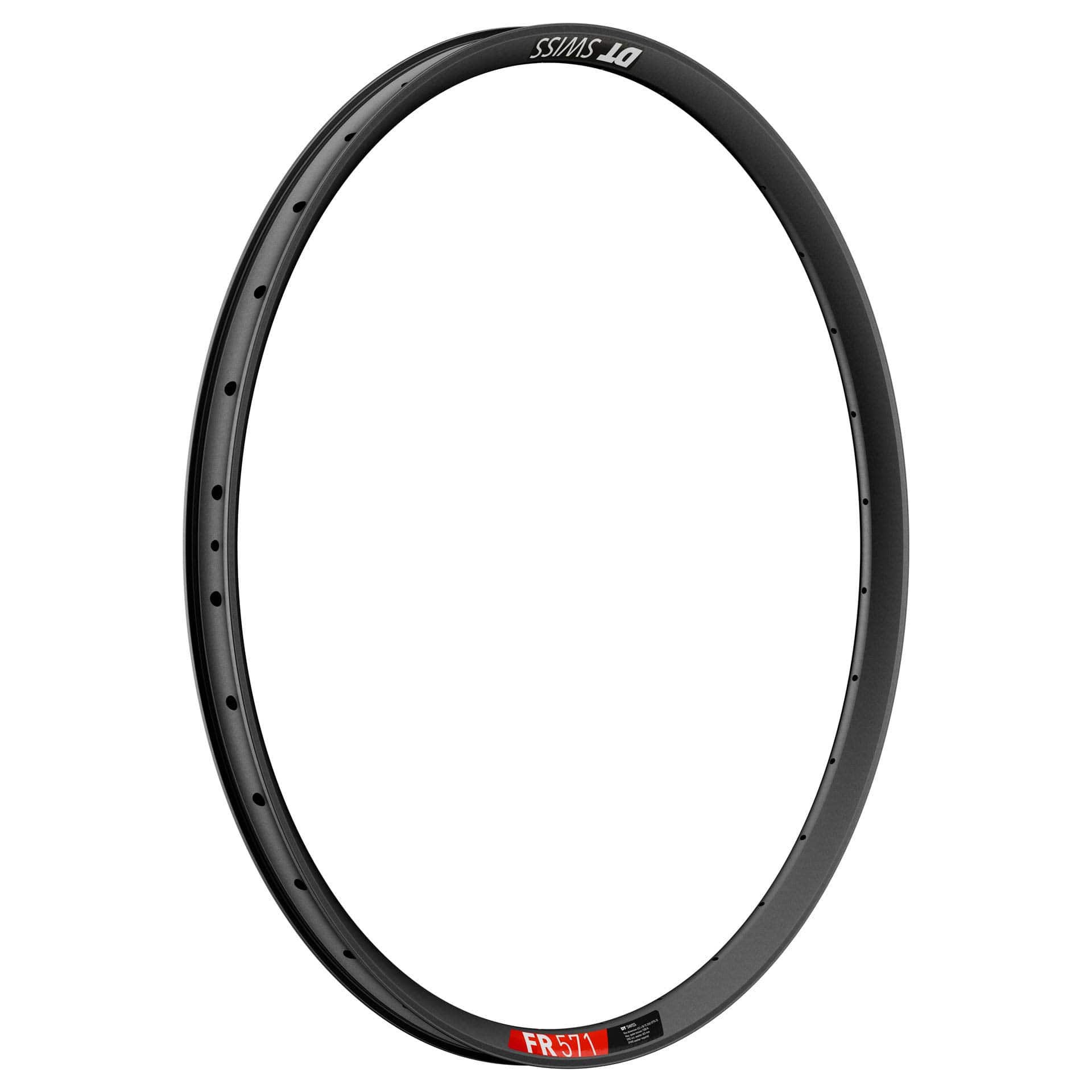

DT Swiss Rim – FR571

Description

***DT PRO LOCK HEX BLACK BRASS NIPPLES INCLUDED

The latest and strongest DT Swiss Rim. Designed to be a rear-only rim.

GENERAL

Field of application

FR

Product type

571

Rim joint

Welded

Color

Black

Net weight [g]

650.000

recommended system weight max.

140 kg,140 kg

ASTM classification

5,5

Aproved for e-bikes

Yes (max. 32Km/h or max. 250W)

nfd/k:zzvconf_MATERIAL&BRAKE.htm

Material

ALUMINIUM

Tire interface

Hooked / Crotchet tubeless TC

Brake interface

Disc

DIMENSIONS

Rim diameter

584 mm (27.5″ / 650B)

Inner width

30 mm

Outer width

36 mm

Rim height

23 mm

HOLES

Number of holes

32

Spoke bore rim

Non eyelet PHR

Valve hole

Presta

ACCESSORIES

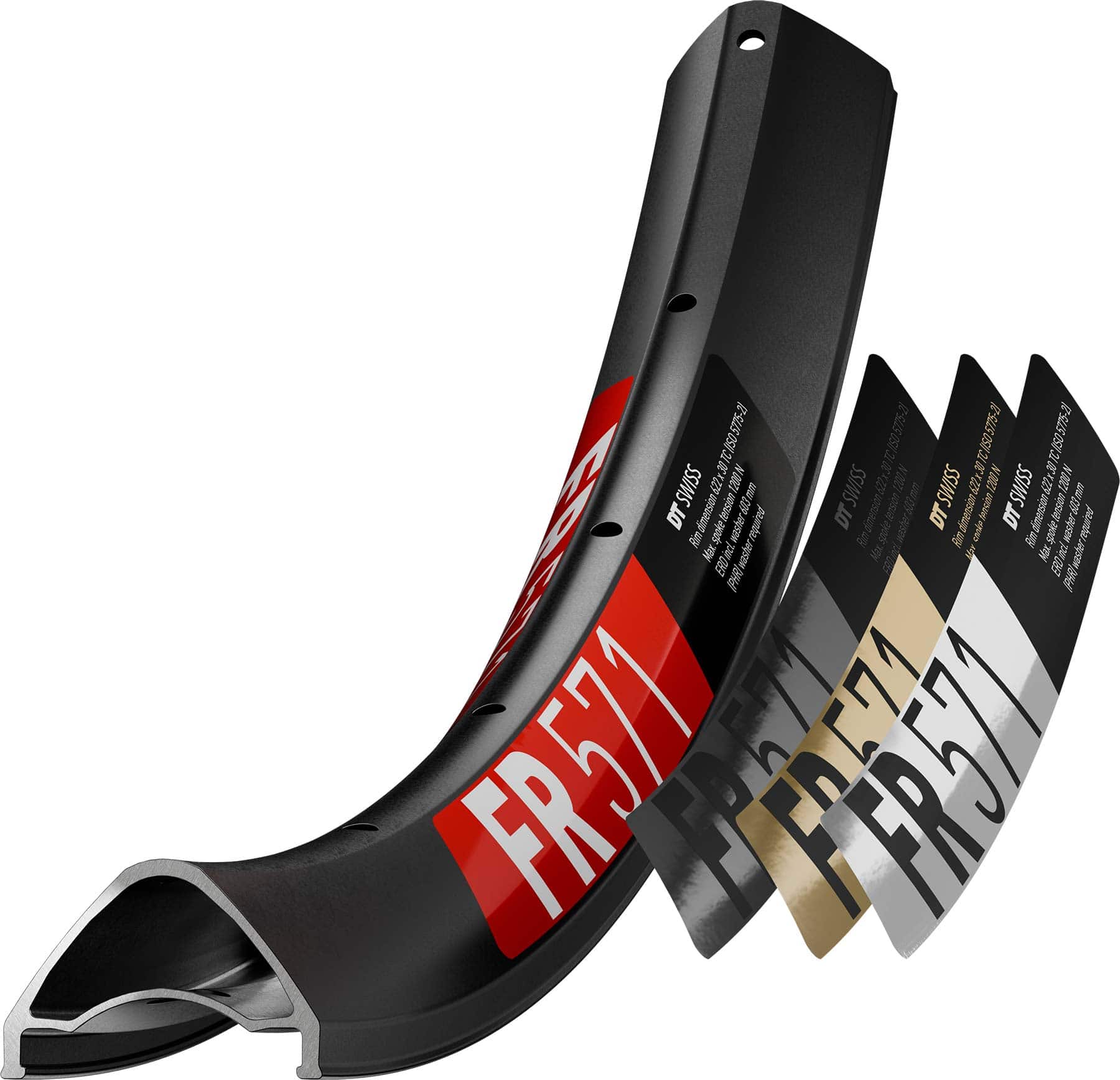

Decalset

Decalset Black Chrome Gold

Inclusive Nipple kit

DT Pro Lock flat hex brass blk

Inclusive PHR kit

Washer PHR
